TECHNICAL SHEET MAN Tractor unit MAN TGX 18.540-640 4x2 BLS SC EURO 6C
Main characteristics
| Range | TGX |
| Model | 18.540-640 4x2 BLS SC EURO 6C |
| Type of vehicle | Tractor |
| Axles configuration | 4x2 |
| Empty weight | - |
| GVWR | 19 000 kg |
| Maximum allowable weight | 44 000 kg |
| Max. front weight | 7 500 / 8 000 kg |
| Max. back weight | 13 000 kg |
Measurements
| XL | XLX | XXL | ||||
|---|---|---|---|---|---|---|
| Model | 36 | 39 | 36 | 39 | 36 | 39 |
| A / Overall length | 5,875 m | 6,175 m | 5,842 m | 6,142 m | 5,842 m | 6,142 m |
| B / Width | 2,500 m | |||||
| C / Chassis cab width | - | |||||
| D / Chassis cab width rear under-frame | - | |||||
| E / Front overhang | 1,475 m | |||||
| F / Wheel base | 3,600 m | 3,900 m | 3,600 m | 3,900 m | 3,600 m | 3,900 m |
| H1 / Empthy chassis height (front) | - | |||||
| H1 / Loaded chassis height (front) | - | |||||
| N / Rear overhang | 0,800 m | |||||
| T / Empty cab height | 3,403 m | |||||
| Y / Max. fifth wheel lead | 0,599 m | 0,725 m | 0,594 m | 0,643 m | 0,587 m | 0,635 m |
| Y / Minimum fifth wheel lead | 0,118 m | 0,214 m | 0,112 m | 0,120 m | 0,105 m | 0,112 m |
| Y / Standard fifth wheel lead | 0,585 m | |||||
| Turning radius inbetween walls | 7,400 m | 7,850 m | 6,450 m | 6,900 m | 6,450 m | 6,900 m |
Masses
| XL | XLX | XXL | ||||
|---|---|---|---|---|---|---|
| Model | 36 | 39 | 36 | 39 | 36 | 39 |
| Total weight | 7 770 kg | 7 535 kg | 7 790 kg | 7 805 kg | 7 815 kg | 7 830 kg |
| Minimum weight on front axle | 1 700 kg | 1 700 kg | 1 700 kg | 4 200 kg | ||
| Minimum weight on rear axle | 4 100 kg | 4 100 kg | 1 700 kg | 4 200 kg | ||
| Chassis cab front axle weight | 5 630 kg | 5 370 kg | 5 650 kg | 5 655 kg | 5 675 kg | 5 680 kg |
| Chassis cab rear axle weight | 2 140 kg | 2 165 kg | 2 140 kg | 2 150 kg | 2 140 kg | 2 150 kg |
Engines
| Name | MAN D3876LF07 | MAN D3876LF08 | MAN D3876LF09 |
| Administrative power | - | 41 cv | - |
| Bore × stroke | - | 138 x 170 mm | - |
| Catalyst and injection | Catalyseur SCR et injection AdBlue® | Catalyseur SCR et injection AdBlue® | Catalyseur SCR et injection AdBlue® |
| Coolant (without retarder) | - | - | - |
| Cooling circuit (with retarder) | - | - | - |
| Engine size | - | 15,2 L | - |
| Max. power | 427 kW (580 ch) à 1800 tr/min | 397 kW (540 ch) à 1800 tr/min | 471 kW (640 ch) à 1800 tr/min |
| Maximum torque | 2900 Nm de 900 à 1380 tr/min | 2700 Nm de 900 et 1380 tr/min | 3000 Nm de 900 à 1380 tr/min |
| Motor retarder - braking power | - | - | - |
| Name | MAN D3876LF07 | MAN D3876LF08 | MAN D3876LF09 |
| Oil capacity | - | - | - |
Used man tgx tractor units
10

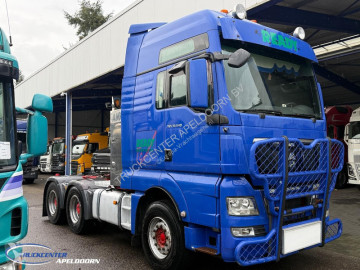

MAN TGX 33.540 6x4 Big...
