TECHNICAL SHEET RENAULT Tractor unit RENAULT T HIGH T HIGH 520 T4X2 E6 MAXISPACE
Main characteristics
| Range | T HIGH |
| Model | T HIGH 520 T4X2 E6 MAXISPACE |
| Type of vehicle | Tractor |
| Axles configuration | 4x2 |
| Empty weight | - |
| GVWR | 19 000 kg |
| Maximum allowable weight | 44 000 kg |
| Max. front weight | 8 000 kg |
| Max. back weight | 13 000 kg |
Measurements
| High Sleeper Cab | ||
|---|---|---|
| Model | 37 | 38 |
| A / Overall length | 5,890 m | 5,990 m |
| B / Width | 2,490 m | |
| C / Chassis cab width | - | |
| D / Chassis cab width rear under-frame | - | |
| E / Front overhang | 1,365 m | |
| F / Wheel base | 3,700 m | 3,800 m |
| H1 / Empthy chassis height (front) | 0,975 m | |
| H1 / Loaded chassis height (front) | 0,920 m | |
| N / Rear overhang | 0,825 m | |
| T / Empty cab height | 3,882 m | |
| Y / Max. fifth wheel lead | 0,807 m | 0,825 m |
| Y / Minimum fifth wheel lead | 0,154 m | 0,153 m |
| Y / Standard fifth wheel lead | 0,525 m | 0,625 m |
| Turning radius inbetween walls | 6,656 m | 6,856 m |
Masses
| High Sleeper Cab | ||
|---|---|---|
| Model | 37 | 38 |
| Total weight | 7 757 kg | 7 769 kg |
| Minimum weight on front axle | - | |
| Minimum weight on rear axle | - | |
| Chassis cab front axle weight | 5 605 kg | 5 620 kg |
| Chassis cab rear axle weight | 2 152 kg | 2 149 kg |
Engines
| Name | DTI 13 |
| Administrative power | 34 cv |
| Bore × stroke | 131 x 158 mm |
| Coolant (without retarder) | - |
| Cooling circuit (with retarder) | - |
| Engine size | 12,8 l |
| Max. power | 382 kW de 1432 à 1800 tr/min |
| Maximum torque | 2550 Nm de 1100 tr/min à 1432 tr/min |
| Motor retarder - braking power | - |
| Name | DTI 13 |
| Oil capacity | - |
Used renault t-high tractor units
21

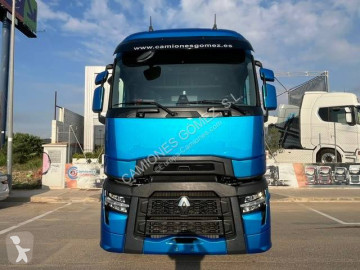

Renault T-High 480 T4X2 E6
50,400 €
2021
549900 km
Spain -
Massanassa
13

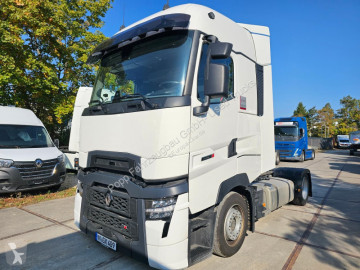

Renault T-High T 480...
79,800 €
2024
252943 km
Germany -
Nürnberg
15

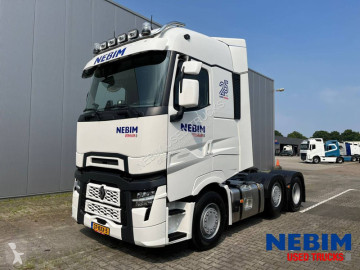

Renault T-High T520 6x2 -...
99,500 €
2024
140270 km
Netherlands -
Weert
5

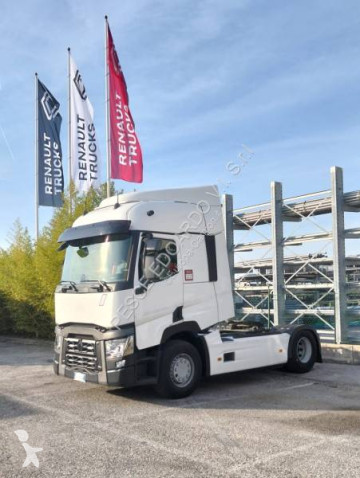

Renault T-High 480 T4X2 E6
Price on request
2018
500000 km
Italy -
Mogliano veneto
9

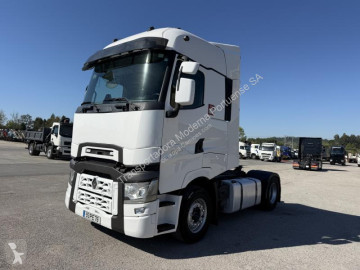

Renault T-High 520 Gamme
Price on request
2014
1309351 km
Portugal -
Anadia
16

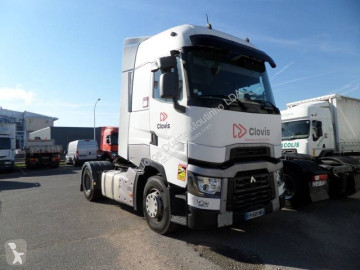

Renault T-High 480
24,900 €
2017
658000 km
Portugal -
Rio de loba - viseu
8

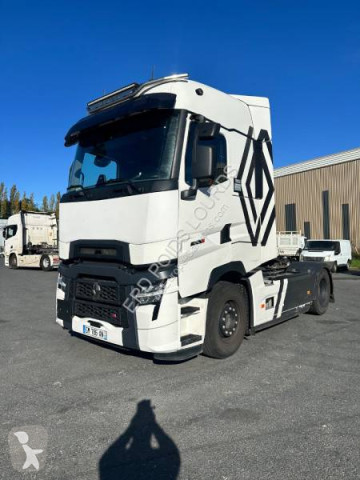

Renault T-High T4X2 480 TC
72,000 €
2023
280000 km
France -
Oissel (76)
4

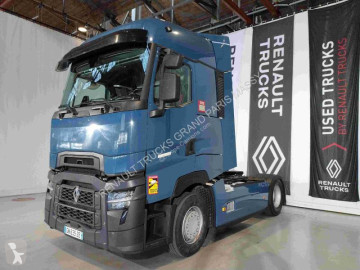

Renault T-High 480
