TECHNICAL SHEET Scania Tractor unit Scania R 360 / 400 / 440 / 480 Extra-Bas
Main characteristics
| Range | R |
| Model | 360 / 400 / 440 / 480 Extra-Bas |
| Version | LA4x2MEB Extra-Bas |
| Type of vehicle | Tractor |
| Axles configuration | 4x2 |
| Empty weight | - |
| GVWR | 17 990 kg |
| Maximum allowable weight | 44 000 kg |
| Max. front weight | 7 100 kg / 7 500 kg |
| Max. back weight | 11 500 kg / 12 000 kg |
Measurements
| CR19H | CR19N | |||
|---|---|---|---|---|
| Model | 35 | 37 | 35 | 37 |
| A / Overall length | 5,785 m | 5,935 m | 5,785 m | 5,935 m |
| B / Width | 2,476 m | |||
| C / Chassis cab width | 0,925 m | |||
| D / Chassis cab width rear under-frame | 2,625 m | 2,775 m | 2,625 m | 2,775 m |
| E / Front overhang | 1,455 m | |||
| F / Wheel base | 3,55 m | 3,70 m | 3,55 m | 3,70 m |
| H1 / Empthy chassis height (front) | - | |||
| H1 / Loaded chassis height (front) | - | |||
| N / Rear overhang | 0,78 m | |||
| T / Empty cab height | - | |||
| Y / Max. fifth wheel lead | 0,644 m | 0,664 m | 0,653 m | 0,673 m |
| Y / Minimum fifth wheel lead | 0,550 m | 0,461 m | 0,459 m | 0,471 m |
| Y / Standard fifth wheel lead | 0,510 m | 0,660 m | 0,510 m | 0,660 m |
| Turning radius inbetween walls | 7,1 m | 7,4 m | 7,1 m | 7,4 m |
Masses
| CR19H | CR19N | |||
|---|---|---|---|---|
| Model | 35 | 37 | 35 | 37 |
| Total weight | 7 030 kg | 7 055 kg | 6 984 kg | 7 009 kg |
| Minimum weight on front axle | 3 980 kg | |||
| Minimum weight on rear axle | 1 720 kg | |||
| Chassis cab front axle weight | 5 066 kg | 5 107 kg | 5 030 kg | 5 071 kg |
| Chassis cab rear axle weight | 1 964 kg | 1 948 kg | 1 954 kg | 1 938 kg |
Engines
| Name | DC1305 | DC1306 | DC1307 | DC1310 |
| Administrative power | 34 cv | 34 cv | 34 cv | 34 cv |
| Bore × stroke | 130 x 160 mm | 130 x 160 mm | 130 x 160 mm | 130 x 160 mm |
| Coolant (without retarder) | - | - | - | - |
| Cooling circuit (with retarder) | 44 l (+20 l) | 44 l (+20 l) | 44 l (+20 l) | 44 l (+20 l) |
| Engine size | 12,7 l | 12,7 l | 12,7 l | 12,7 l |
| Motor retarder - braking power | 262 kw (356 ch) | 262 kw (356 ch) | 262 kw (356 ch) | 262 kw (356 ch) |
| Name | DC13 05 400 XPI - Scania EGR | DC13 06 360 XPI - Scania EGR | DC13 07 480 XPI - Scania EGR | DC13 10 440 XPI - Scania EGR |
| Oil capacity | 40 l | 40 l | 40 l | 40 l |
| Power | 294 kw à 1900 tr/min | 265 kw à 1900 tr/min | 353 kw à 1900 tr/min | 324 kw à 1900 tr/min |
| Torque | 2100 Nm à 1000-1300 tr/min | 1850 Nm à 1000-1300 tr/min | 2500 Nm à 1000-1300 tr/min | 2300 Nm à 1000-1300 tr/min |
Used scania r tractor units
14
Scania R R620
30,000 €
1567800 km
Spain -
Carmona
10
Scania R R520
21,000 €
2014
1518770 km
Spain -
Alcalá de guadaira
13

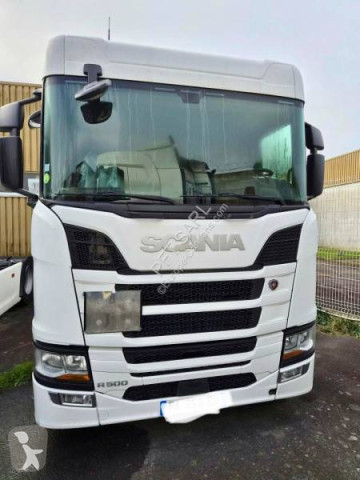

Scania R 500
