TECHNICAL SHEET DAF Tractor unit DAF XF FTG 450 (430/480/530) 6x2
Main characteristics
| Range | XF |
| Model | FTG 450 (430/480/530) 6x2 |
| Type of vehicle | Tractor |
| Axles configuration | 6x2 |
| Empty weight | - |
| GVWR | 26 000 kg |
| Maximum allowable weight | 44 000 kg |
| Max. front weight | 8 000 kg |
| Max. back weight | 19 000 kg |
Measurements
| Space Cab | Super Space Cab | |||
|---|---|---|---|---|
| Model | 39 | 41 | 39 | 41 |
| A / Overall length | 6,310 m | 6,510 m | 6,310 m | 6,510 m |
| B / Width | 2,550 m | |||
| C / Chassis cab width | - | |||
| D / Chassis cab width rear under-frame | - | |||
| E / Front overhang | 1,370 m | |||
| F / Wheel base | 3,950 m | 4,150 m | 3,950 m | 4,150 m |
| H1 / Empthy chassis height (front) | 0,970 m | |||
| H1 / Loaded chassis height (front) | 0,950 m | |||
| N / Rear overhang | 0,990 m | |||
| T / Empty cab height | 3,530 m | |||
| Y / Max. fifth wheel lead | - | |||
| Y / Minimum fifth wheel lead | - | |||
| Y / Standard fifth wheel lead | - | |||
| Turning radius inbetween walls | - | |||
Masses
| Space Cab | Super Space Cab | |||
|---|---|---|---|---|
| Model | 39 | 41 | 39 | 41 |
| Total weight | 8,506 kg | 8,581 kg | 8,569 kg | 8,644 kg |
| Minimum weight on front axle | - | |||
| Minimum weight on rear axle | - | |||
| Chassis cab front axle weight | 5,234 kg | 5,256 kg | 5,296 kg | 5,319 kg |
| Chassis cab rear axle weight | 3,272 kg | 3,325 kg | 3,273 kg | 3,325 kg |
Engines
| Name | XF 430 MX-13 | XF 450 MX-11 | XF 480 MX-13 | XF 530 MX-13 |
| Administrative power | - | - | - | - |
| Bore × stroke | - | - | - | - |
| Coolant (without retarder) | - | - | - | - |
| Cooling circuit (with retarder) | - | - | - | - |
| Engine size | - | - | - | - |
| Motor retarder - braking power | - | - | - | - |
| Name | XF 430 MX-13 | XF 450 MX-11 | XF 480 MX-13 | XF 530 MX-13 |
| Oil capacity | - | - | - | - |
| Power | 315 kW (428 ch) | 330 kW (449 ch) à 1600 tr/min | 355 kW (483 ch) | 390 kW (530 ch) |
| Torque | - | 2300 Nm à 900- 1125 tr/min | - | - |
Used daf xf tractor units
9

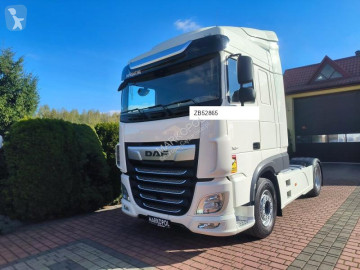

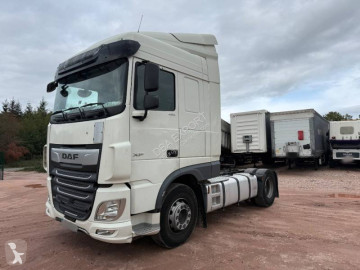

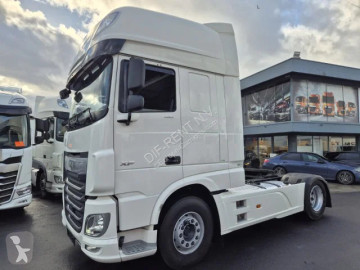

DAF XF n 480 FT 4X2
