TECHNICAL SHEET IVECO Tractor unit IVECO Stralis AD 440 S 40 TP
Main characteristics
| Range | Stralis |
| Model | AD 440 S 40 TP |
| Type of vehicle | Tractor |
| Axles configuration | 4x2 |
| Empty weight | - |
| GVWR | 19 000 kg |
| Maximum allowable weight | 40 000/44 000 kg |
| Max. front weight | 8 000 kg |
| Max. back weight | 13 000 kg |
Measurements
| Hi-Street | ||
|---|---|---|
| Model | 36 | 38 |
| A / Overall length | 6,068 m | 6,248 m |
| B / Width | 2,550 m | |
| C / Chassis cab width | - | |
| D / Chassis cab width rear under-frame | - | |
| E / Front overhang | 1,410 m | |
| F / Wheel base | 3,610 m | 3,790 m |
| H1 / Empthy chassis height (front) | 0,950 m | |
| H1 / Loaded chassis height (front) | 0,920 m | |
| N / Rear overhang | 1,048 m | |
| T / Empty cab height | 2,963 m | |
| Y / Max. fifth wheel lead | 0,970 m | 1,020 m |
| Y / Minimum fifth wheel lead | 0,390 m | 0,400 m |
| Y / Standard fifth wheel lead | - | |
| Turning radius inbetween walls | 7,100 m | 7,300 m |
Masses
| Hi-Street | ||
|---|---|---|
| Model | 36 | 38 |
| Total weight | 6 690 kg | 6 710 kg |
| Minimum weight on front axle | - | |
| Minimum weight on rear axle | - | |
| Chassis cab front axle weight | 4 500 kg | 4 510 kg |
| Chassis cab rear axle weight | 2 190 kg | 2 200 kg |
Engines
| Name | FPT Cursor 9 |
| Administrative power | 23 cv |
| Bore × stroke | 117 x 135 mm |
| Cooling circuit | - |
| Engine size | 8,709 L |
| Max. power | 294 kW (400 ch) de 1655 à 2200 tr/min |
| Maximum torque | 1700 Nm de 1200 à 1655 tr/min |
| Motor retarder - braking power | - |
| Name | FPT Cursor 9 |
| Oil capacity | 25 L |
Used iveco stralis tractor units
22

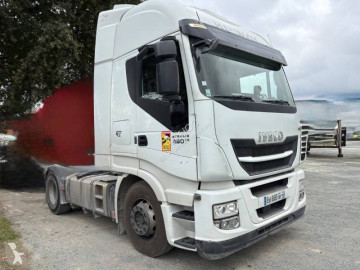

Iveco Stralis 460 Hi-Way
18,000 €
2017
685000 km
France -
Tremorel (22)
16

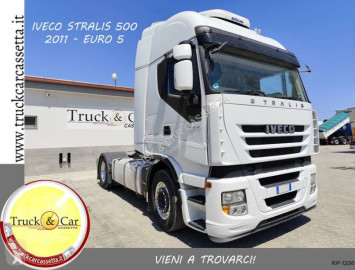

Iveco Stralis 440 S 500
Price on request
2011
1360117 km
Italy -
Trani
11

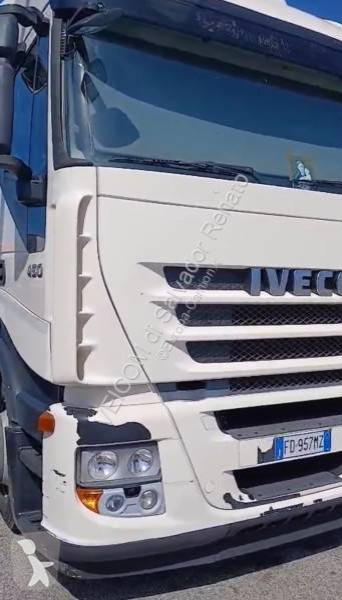

Iveco Stralis 440 S 46
9,000 €
2011
830000 km
Italy -
San martino di lupari
14
Iveco Stralis 500 /...
9,750 €
2014
934289 km
Netherlands -
Vuren
28
Iveco Stralis S Way 510...
29,250 €
2020
636149 km
Netherlands -
Waalwijk
12
Iveco Stralis 460
Price on request
2017
237000 km
Italy -
Podenzano
10
Iveco Stralis 430,...
5,500 €
2002
1365097 km
Poland -
Wilczyna
32
Iveco Stralis 450 4X2...
11,400 €
2012
313125 km
Netherlands -
Veghel
Key
- : Standard equipment
- : Equipments in option
Notes :
1 The information and pictures of this technical sheet are given on an indicative basis. All these data may be modified by the manufacturer. For more information, you can directly go to your dealership.
